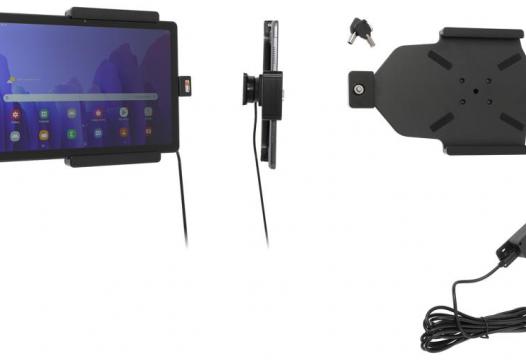

Active holder for fixed installation. With tilt swivel. 2 keys included.
This holder is to be used when you will secure your device and still have it easy accessable. Perfect for use in stores, at exhibitions and any place where you want to use your device without having it easy removable. In order to remove the tablet from the holder you need the key or a certain amount of violence is required. The holder includes a lock and two keys.
For fixed installation. The holder is to be connected inside the dashboard, providing an elegant installation without any cables hanging over the interior. The charging box has two USB ports: QC 3.0A + 2.4A. Connect the power cable with a 2A fuse. Professional installation recommended.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade ABS/Acetal plastic. Color: black. Made in Sweden.
An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on a Pedestal mount or a Brodit headrest mount.
Charging specification:
- Input Molex 2-Pin
- Output Connector Type: Dual USB Type-A Female.
- Output Voltage: 5V, 9V, 12V(Nominal)
- Output Current:
- USB Port 1: 3.6V ~ 6V/3A 6.2-9V/2A 9.2-12V/1.5A (Recommended for Android etc)
- USB Port 2: 4.9V ~ 5.25V 2.4A (Recommended for Apple)
- Output Voltage Ripple: 300mV pk-pk at Max Load
- Input Voltage Range: DC 12--24V DC, Input can handle 40V Load dump translent events
- Input Current: 3.0 A DC Max
- Input Current with No device attached: 0.005A
- DC-DC Conversion Efficiency: Over 86% Typical
- Rated Power:
- USB Port 1: 18 Watts Max.
- USB Port 2: 12 Watts Max.
