With USB-cable + cig-plug adapter with 2 USB ports: QC 3.0A + 2.4A. With tilt swivel. 12/24 Volt. With spring stud locking.

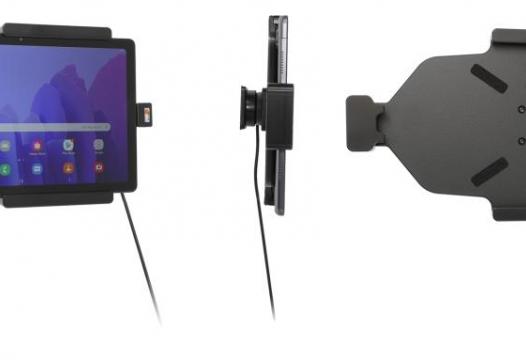

This holder is to be used when you want to have your Samsung securely in place and still have it easy accessable. The holder has a spring stud locking feature.
With USB-cable with cig-plug adapter, choose to connect either to the vehicle's USB outlet or the 12/24V socket. The cig-plug adapter has two USB ports: QC 3.0A + 2.4A. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade ABS/Acetal plastic. Color: black. Made in Sweden.
An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on a Pedestal mount or a Brodit headrest mount.
Charging specification:
- Output Connector Type: Dual USB Type-A Female.
- Output Voltage: 5V, 9V, 12V(Nominal)
- Output Current:
- USB Port 1: 4.9V ~ 5.25V 2.4A (White port, recommended for Apple)
- USB Port 2: 3.6V ~ 6V/3A 6.2-9V/2A 9.2-12V/1.5A (Green port, recommended for Android etc)
- Output Voltage Ripple: 300mV pk-pk at Max Load
- Input Voltage Range: DC 12--24V DC, Input can handle 40V Load dump translent events
- Input Current: 3.0 A DC Max
- Input Current with No device attached: 0.005A
- DC-DC Conversion Efficiency: Over 86% Typical
- Rated Power:
- USB Port 1: 12 Watts Max. White port.
- USB Port 2: 18 Watts Max. Green port.
